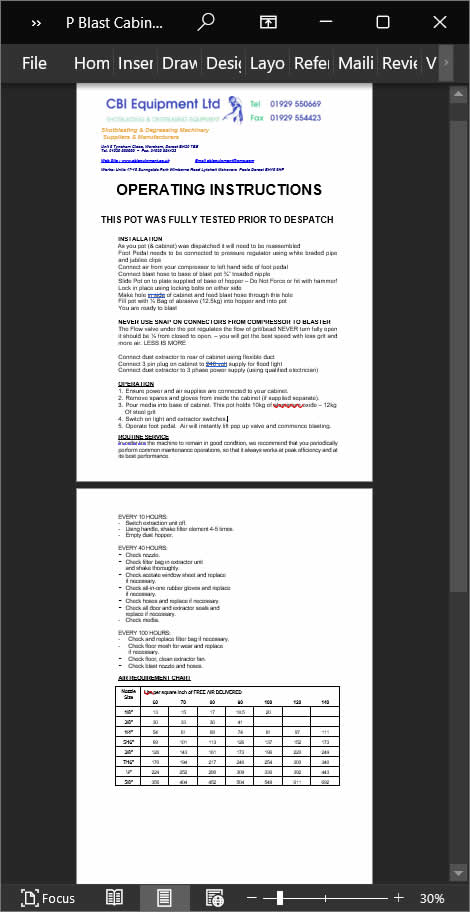

Download your blast machine user manual below:

User manual file availability 100%
User manual file availability 100%
Suction Cabinet User Manual 1021
Presssure Blast Cabinet User Manual for 12L pressure pot conversion 1021

To download, right-click your chosen manual and select, Save link as, to store a copy on your computer.

           OPERATION

  1. Ensure power and air supplies are connected to your cabinet.
  2. Remove spares and gloves from inside the cabinet (if supplied separately).
  3. Pour media into the base of the cabinet. This pot holds 10kg of aluminum oxide – 12kg

    Of steel grit

  1. Switch on light and extractor switches.
  2. Operate foot pedal. Air will instantly lift the pop-up valve and commence blasting.

          ROUTINE SERVICE

In order for the machine to remain in good condition, we recommend that you periodically perform common maintenance operations, so that it always works at peak efficiency and at its best performance.

EVERY 10 HOURS:

–   Switch extraction unit off.

–   Using the handle, shake the filter element 4-5 times.

–   Empty dust hopper.

EVERY 40 HOURS:

  • Check nozzle.
  • Check filter bag in extractor unit

and shake thoroughly.

  • Check acetate window sheet and replace

                 if necessary.

  • Check all-in-one rubber gloves and replace

if necessary.

  • Check hoses and replace them if necessary.
  • Check all door and extractor seals and

     replace if necessary.

–   Check media.

EVERY 100 HOURS:

–     Check and replace the filter bag if necessary.

–     Check floor mesh for wear and replace

if necessary.

  • Check the floor, clean the extractor fan.
  • Check blast nozzle and hoses.

            AIR REQUIREMENT CHART

  Nozzle

    Size



Lbs per square inch of FREE AIR DELIVERED



60



70



80



90



100



120



140



1/8″



13

15

17

18.5

20



3/8″



30

33

36

41



1/4″



54

61

68

74

81

97

111

5/16″



89

101

113

126

137

152

173

3/8″



126

143

161

173

196

220

249

7/16″



170

194

217

240

254

300

340

½”



224

252

280

309

336

392

443

5/8″



356

404

452

504

548

611

692

FAULT FINDING

               CORRECT MAINTENANCE

All blasting equipment has components that by use need replacing.  Please ensure that proper maintenance procedures are adopted to evaluate and replace any parts that may need fitting before a breakdown renders machinery inoperable.

Listed below are a number of symptoms that could occur when using any pressure blast machine.

               DUSTY CABINET

  • Check extractor is switched on.
  • Shake lever on side of extractor – hourly.
  • Replace dust bag – 6 monthly.
  • Media breaking down. Replace with purer grade.

               AIR PRESSURE DROPS

  • The nozzle is worn.
  • Compressed air supply ineffective.
  • Has airline any snap connectors?

               NO GRIT WHEN PEDAL PRESSED

  • The Media delivery pipe is blocked. Clean out.
  • Nozzle blocked.
  • Pop-up valve jammed. Strip down and free.
  • Pressure pot overfilled. Strip down and drain.
  • Media damp from the air. Strip down and replace.
  • Foot pedal faulty.
  • Water trap faulty.

               PRESSURE POT EMPTIES TOO QUICKLY

Steel grits are heavier than alumina’s and therefore can last longer.  It could be beneficial by increasing the blasting durations to use one of these products.
